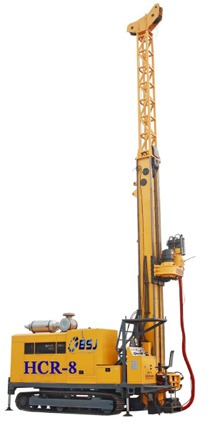

BSJ-HCR-8 Hydraulic Core Drilling Rig
Specifications
Drill Constitution
HCR-8 Technical Data
Diesel Engine
Model
WP12.375
Power
276kW
Speed
2100rpm
Drilling Capacity
NQ
3000m
HQ
2400m
PQ
1700m
Drill Head Capacity
Speed
0~1250rpm, three shifts stepless
Max.Torque
7200N.m
Hold Diameter
121mm
Max Pull
295kN
Max Trust
152kN
Main Hoist Capacity
Hoisting Force
120kN
Wire Diameter
21.5mm
Wire Length
50M
Wine Line Hoist Capacity
Hoisting Force(Single wire)
15kN
Wire Diameter
6.3mm
Wire Length
2800mm
Mast
Mast Height
9.6m
Adjusting Angle
0-90กใ
Drilling Angle
45-90กใ
Feeding Stoke
4700mm
Slippage Stroke
1100mm
Mud Pump
Model
BW320
Others
Dimensions
8300กม2400กม3260mm
Total Weight
25000kg
Movement Way
Crawler
