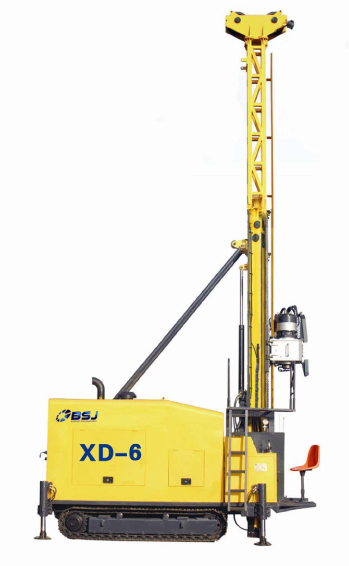

BSJ-XD-6 Hydraulic Core Drilling Rig

Specifications

Drill Constitution	BSJ-XD-6 Technical Data
Diesel Engine	Model	YCM6420ZG
	Power	175kW
	Speed	2200rpm
Drilling Capacity	BQ	2000m
	NQ	1600m
	HQ	1300m
	PQ	1000m
Drill Head Capacity	Speed	0~1100rpm, two shifts/stepless
	Max.Torque	6400N.m
	Hold Diameter	121mm
	Max Pull	220kN
	Max Trust	110kN
Main Hoist Capacity	Hoisting Force	120kN
	Wire Diameter	22mm
	Wire Length	50M
Wine Line Hoist Capacity	Hoisting Force(Single wire)	15kN(Bare Drum)
	Wire Diameter	6mm
	Wire Length	2000mm
Mast	Mast Height	11M
	Adjusting Angle	0-90°
	Drilling Angle	45-90°
	Feeding Stoke	3800mm
	Slippage Stroke	1500mm
Mud Pump	Model	BW320
Others	Dimensions	6200×2200×2500mm
	Total Weight	14500kg
	Movement Way	Crawler
